Google Analytics Grid Integration

The Google Analytics 4 (GA4) integration enables Salesforce users to view, analyze, search, and export live website traffic, visitor demographics, channel acquisition, and user engagement directly inside AppColab Grid.

What’s Deployed

One-Time Manual Setup

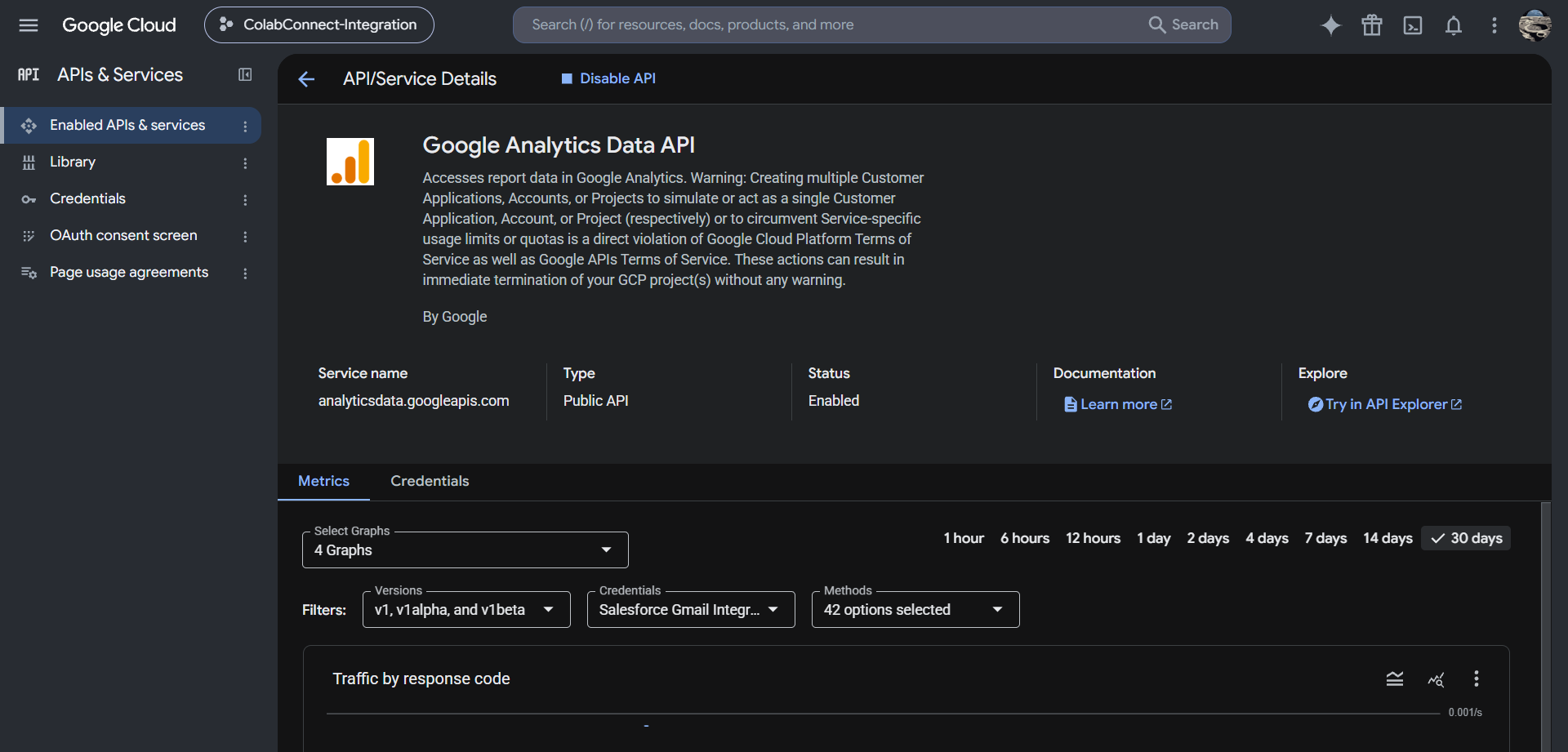

1. Enable Google Analytics Data API in Google Cloud

1. In the Google Cloud Console, open the project you created for Google integrations.
2. Navigate to APIs & Services → Library.
3. Search for and enable Google Analytics Data API.
4. In APIs & Services → OAuth consent screen, ensure the following scope is added:
   • https://www.googleapis.com/auth/analytics.readonly
5. Save changes.

2. Configure Credentials in Salesforce Setup

Salesforce uses External Credentials and Named Credentials to securely connect to Google APIs. If you have already set up Google_APIs for Google Sheets or Gmail, you only need to create the Google_Analytics Named Credential (Step 2.2).

2.1 Create the External Credential (if not already created)

1. Go to Setup (gear icon ⚙️ → Setup).
2. In the Quick Find box, enter Named Credentials and select Named Credentials.
3. Click the External Credentials tab → click New:
   • Label: Google APIs
   • Name: Google_APIs
   • Authentication Protocol: OAuth 2.0
   • Authentication Provider: Select your Google Auth Provider (e.g. Google_OAuth).
   • Click Save.
4. Under the Principals section on the detail page, click New:
   • Parameter Name: Google_User
   • Sequence: 1
   • Click Save.
5. On the Google_User principal row, click the dropdown arrow ▼ → click Authenticate.
6. Sign in with the Google account that has access to your GA4 property and approve the requested permissions. (Status will update to Configured).

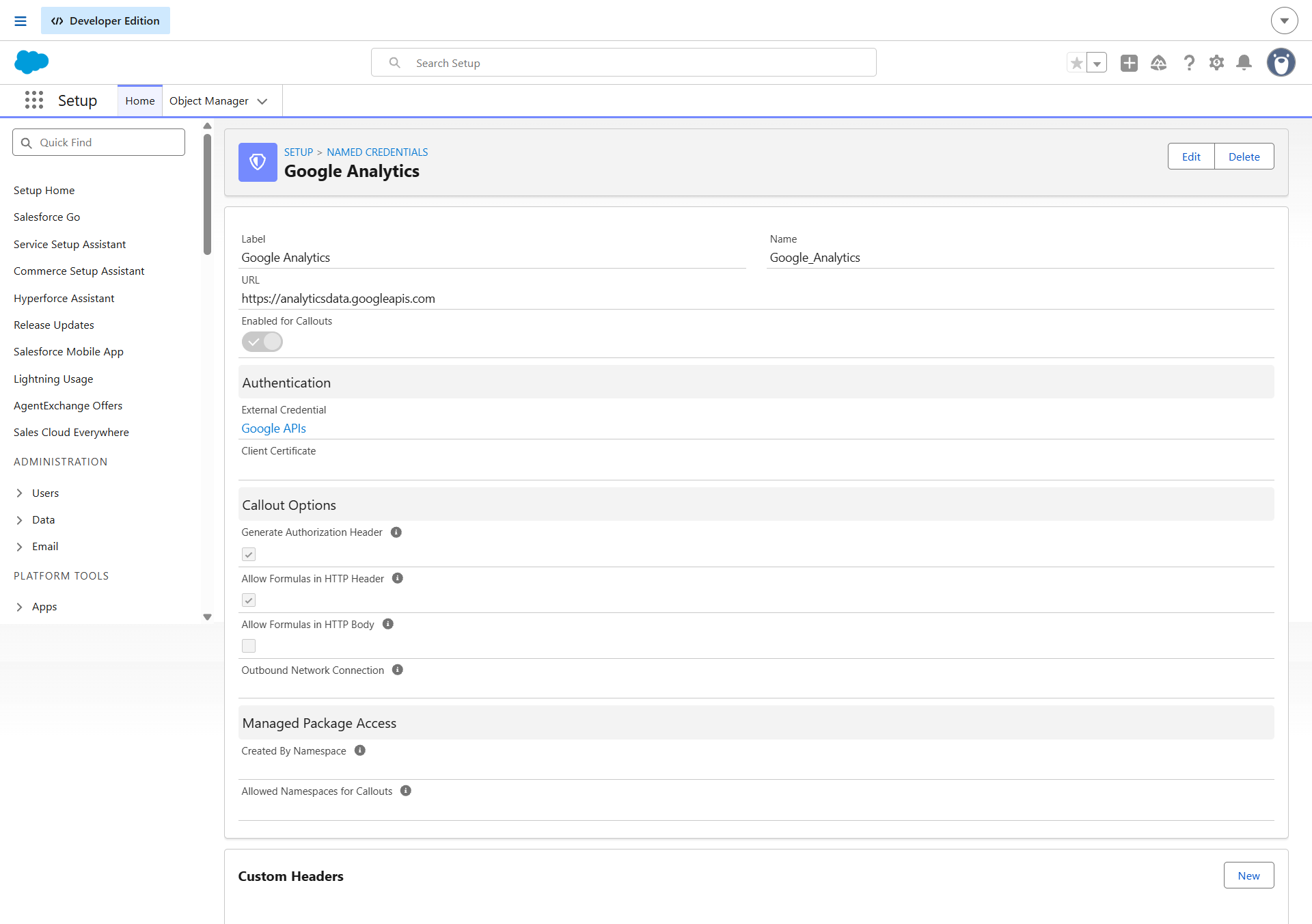

2.2 Create the Named Credential

1. Click the Named Credentials tab (next to External Credentials) → click New:
   • Label: Google Analytics
   • Name: Google_Analytics
   • URL: https://analyticsdata.googleapis.com
   • External Credential: Select Google APIs
   • Generate Authorization Header: Checked
   • Allow Formulas in HTTP Header: Checked
2. Click Save.

3. Assign Permission Set Access

1. In Salesforce Setup, enter Permission Sets in Quick Find.
2. Select Integration Admin (or Appcolab Grid Admin).
3. Click External Credential Principal Access → click Edit.
4. Add Google_APIs - Google_User to Enabled External Credential Principals.
5. Click Save and verify the permission set is assigned to your Salesforce users.

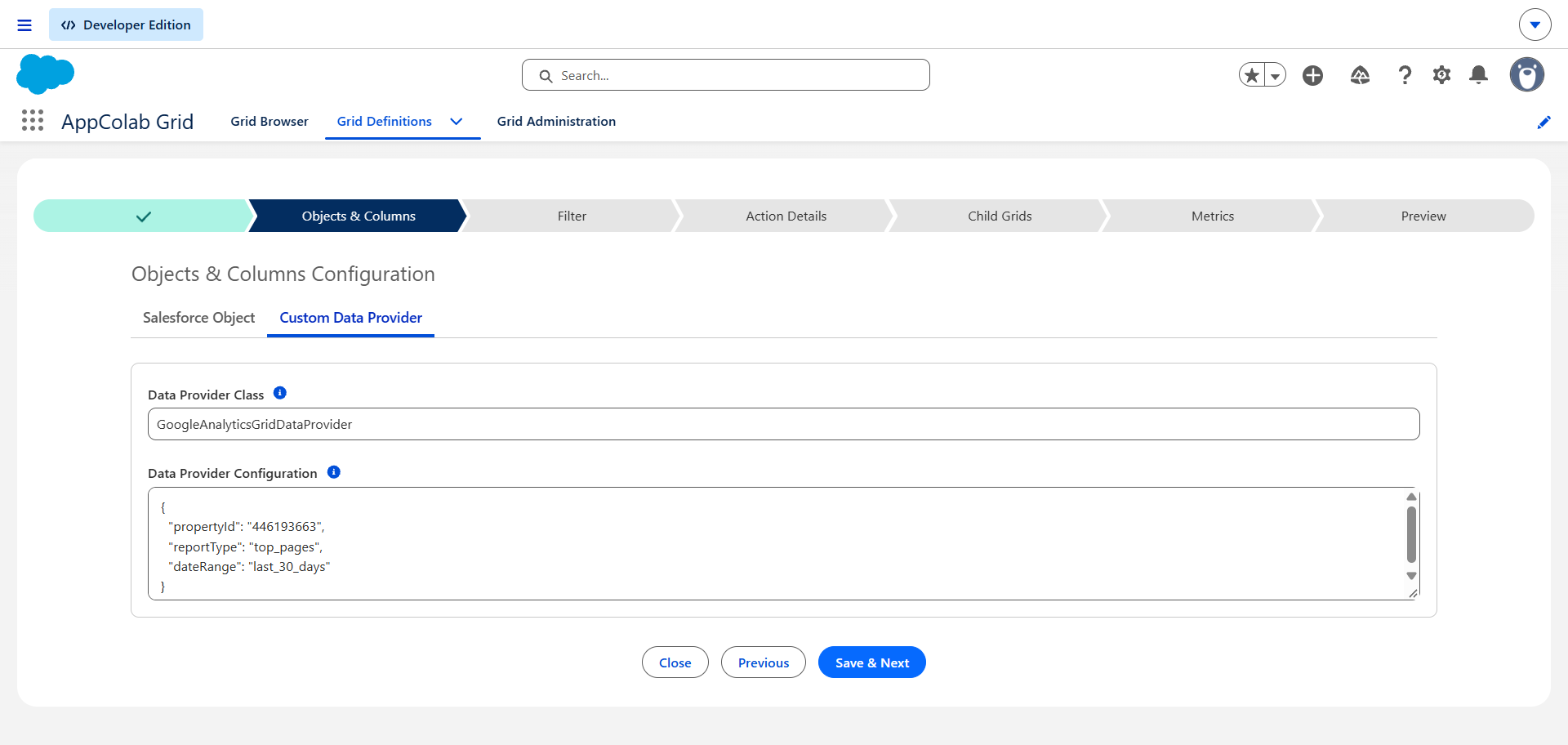

Creating a GA4 Grid Definition

1. In Salesforce, open AppColab Grid app → Grid Definitions tab → click New Grid Definition.
2. Fill in:
   • Grid Settings Name: GA4_Top_Pages
   • Grid Label: Website Top Pages (Last 30 Days)
   • Is Active?: Checked
   • Data Provider Class: GoogleAnalyticsGridDataProvider
   • Data Provider Configuration:

     {
       "propertyId": "446193663",
       "reportType": "top_pages",
       "dateRange": "last_30_days",
       "limit": 100
     }


     Tip: Find your GA4 propertyId in Google Analytics → Admin (⚙️) → Property Settings.

3. Click Save & Next → proceed to Preview.

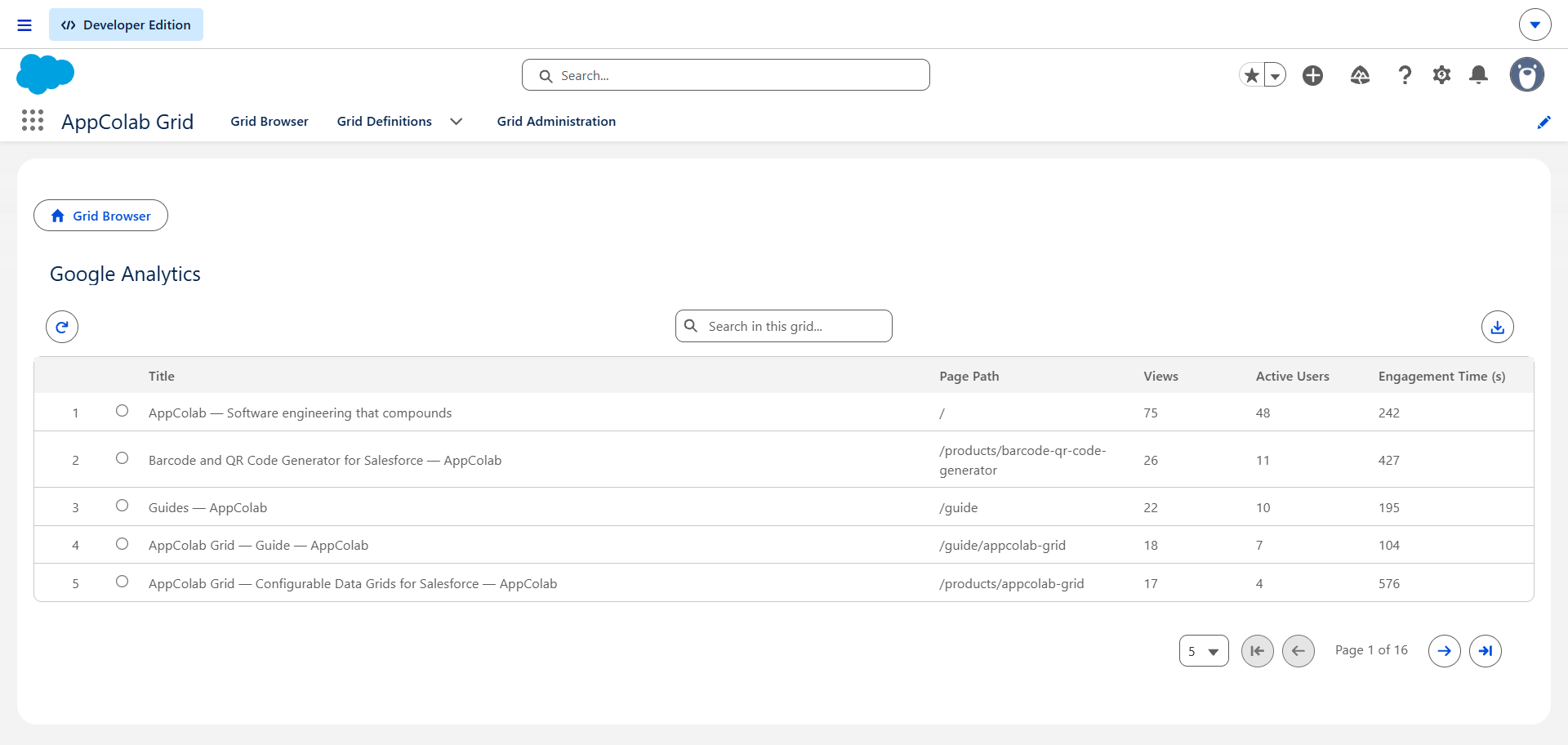

4. Real-time website performance metrics load instantly!

Supported Report Types

AppColab Grid supports 4 dedicated report types configured via reportType in the configuration JSON:

1. Top Pages ("reportType": "top_pages")

Shows top performing website pages, blogs, and landing pages:

• Columns: Page Title, Page Path, Views, Active Users, Engagement Time (s)

2. Geographic Visitors ("reportType": "geo")

Shows where your website visitors are located globally:

• Columns: Country, City, Active Users, New Users, Sessions

3. Traffic Sources ("reportType": "traffic_sources")

Shows how visitors find your brand (Direct, Organic Search, Referral, Social, Paid):

• Columns: Source / Medium, Session Default Channel Group, Sessions, Engaged Sessions, Conversions

4. User Engagement ("reportType": "user_activity")

Shows user activity and event counts:

• Columns: Event Name, Event Count, Total Users

Troubleshooting

• 403 Forbidden / PERMISSION_DENIED: The authenticated Google user does not have Viewer access to the specified GA4 propertyId. Grant access to the Google user in GA4 Admin → Property Access Management.
• 401 Unauthorized: Re-authenticate the Google_User principal in Salesforce Setup → Named Credentials → External Credentials → Google APIs.
